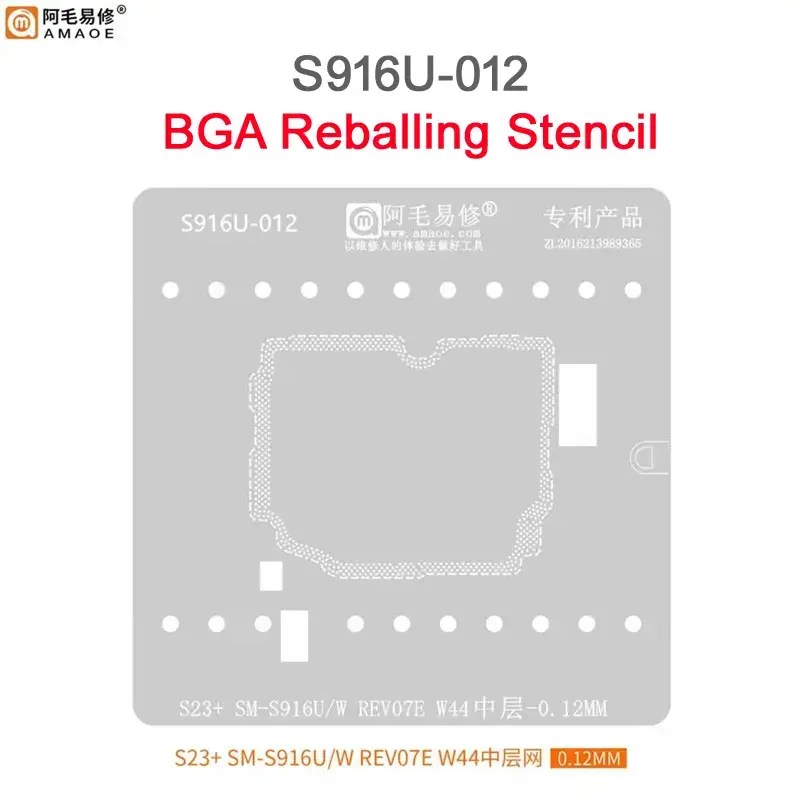

Amaoe S916U-012 Middle Layer Stencil For S23+ SM-S916U/W REV07E W44
Amaoe S916U-012 Middle Layer Stencil for S23+ SM-S916U/W REV07E W44
Looking for a premium solution for precise soldering on the Samsung S23+ motherboard? The Amaoe S916U-012 Middle Layer Stencil is your trusted tool for advanced rework and reballing jobs. Designed specifically for SM-S916U/W REV07E W44, this high-precision stencil ensures every pad is aligned perfectly, saving time and reducing rework errors.
✅ Purpose & Application
The Amaoe S916U-012 middle layer stencil is engineered for the accurate application of solder paste to PCB pads. This ensures reliable placement of surface-mount devices (SMDs) and strong connections after soldering. It’s also ideal for BGA reballing, helping technicians apply uniform solder balls to chip pads with ease and accuracy.
✅ Compatible & Custom-Fit Design
This stencil is custom-tailored for Samsung Galaxy S23+ SM-S916U/W, specifically REV07E W44 versions. The precision aperture design guarantees a snug fit and accurate paste deposition, essential for high-performance repairs and advanced microsoldering.
✅ Premium Quality & Durability
Crafted from industrial-grade stainless steel, this stencil withstands high-temperature soldering processes and repeated use without bending or damage. It delivers consistent performance that professionals can count on, every time.
✅ Why Choose This Stencil?
-
Ensures accurate and clean solder paste application
-
Reduces errors during IC replacement or BGA reballing
-
Speeds up mobile PCB repair with consistent results
-
Compatible with high-end Samsung S23+ series repairs
✅ How to Use
Place the Amaoe S916U-012 middle layer stencil over the PCB, align it precisely, then spread solder paste evenly using a scraper. After applying paste or solder balls, gently remove the stencil and proceed with reflow soldering.
Amaoe S916U-012 middle layer stencil is a must-have for mobile technicians who prioritize accuracy, durability, and efficiency. Upgrade your repair bench today with the trusted tool made for professionals.
Compatible Models :-
- Samsung S23+
- SM-S916U/W
- REV07E
- W44
