Amaoe U-MTK9 BGA Reballing Stencil

Description

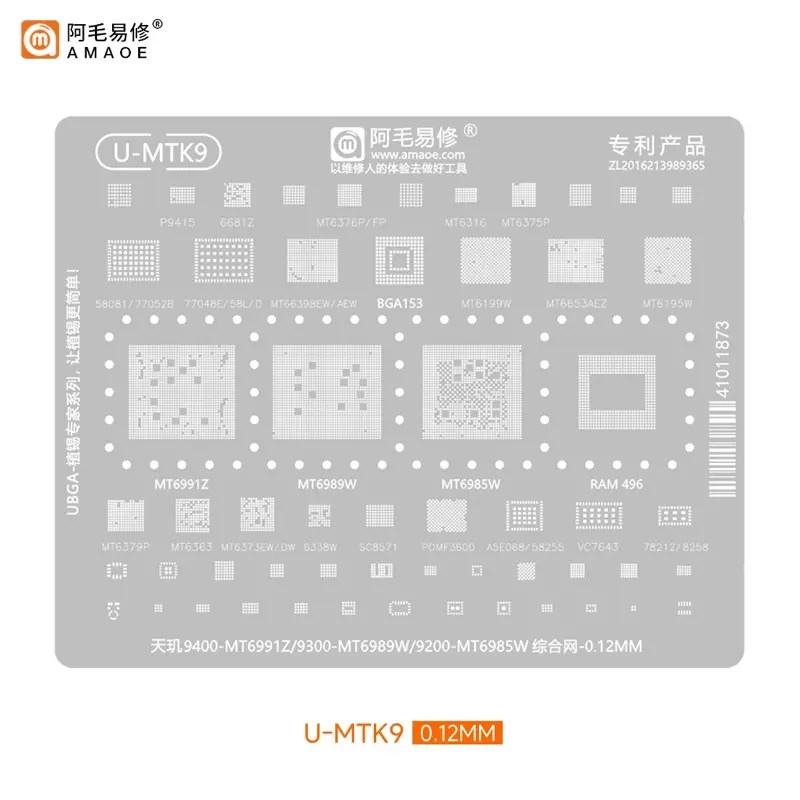

Amaoe U-MTK9 BGA Reballing Stencil

The AMAOE U-MTK9 Precision Stencil is a specialized solution developed for advanced chipset reballing, making it an essential addition to modern mobile repairing tools and phone repairing tools collections.

This stencil is specifically engineered for MediaTek UBGA chipsets, supporting models 9400 (MT6991Z), 9300 (MT6989W), and 9200 (MT6985W). These chipsets are widely used in high-performance smartphones, and repairing them requires exact alignment and consistent solder placement. The U-MTK9 stencil is designed to meet these demanding requirements with professional-grade accuracy.

High-Precision Engineering

The AMAOE U-MTK9 stencil is manufactured using high-quality stainless steel, ensuring long-term durability and resistance to heat deformation. The laser-cut holes are precisely aligned to match the UBGA ball layout of supported MediaTek chipsets, allowing solder balls to sit perfectly during the reballing process. This level of precision significantly reduces the risk of misalignment, short circuits, or weak solder joints.

For technicians working with advanced electronics products and complex motherboard layouts, this stencil provides the consistency needed to achieve clean and repeatable results.

Designed for Professional Reballing

Reballing UBGA chips is a delicate task that demands stable positioning and accurate solder control. The U-MTK9 stencil is designed to offer firm chip placement and uniform solder distribution, helping technicians complete repairs with confidence. Whether you are replacing a damaged chipset or restoring solder balls after chip removal, this stencil supports smooth and efficient workflow.

Its optimized thickness ensures proper solder flow while preventing excess solder spread, making it suitable for high-density chipset repair tasks commonly encountered in modern smartphones.

Compatibility and Application

This stencil is compatible with the following MediaTek UBGA chipsets:

• MediaTek 9400 – MT6991Z

• MediaTek 9300 – MT6989W

• MediaTek 9200 – MT6985W

It is widely used in:

• Smartphone motherboard repair

• Chipset reballing and replacement

• Advanced BGA and UBGA soldering work

• Professional mobile repair labs and service centers

As part of essential mobile repairing products and phone repairing products, the U-MTK9 stencil supports technicians who demand accuracy and efficiency in every repair.

Durable and Reusable Construction

The stainless-steel material ensures the stencil maintains its shape even after repeated heating cycles. This durability makes it a cost-effective tool for repair professionals who perform frequent chipset reballing. The smooth surface allows easy cleaning after use, helping maintain consistent performance over time.

Improves Repair Efficiency

Using the correct stencil reduces trial-and-error and minimizes rework. The AMAOE U-MTK9 stencil helps technicians save time while improving success rates, making it a reliable choice for workshops focused on productivity and quality. It integrates seamlessly with other electronics tools used in chipset repair setups.

Why Choose This Stencil from Baba Tools

At Baba Tools, we focus on supplying reliable, professional-grade electronics products for technicians and repair businesses. The AMAOE U-MTK9 stencil is carefully selected to meet the standards of modern smartphone repair, ensuring compatibility, accuracy, and durability.

Whether you are an experienced technician or running a professional repair center, this stencil supports high-quality workmanship and consistent results.
