Description
The i2C C08 Flash Charger No.1 is a multi-function digital waveform ammeter developed for professional mobile repair and charging diagnostics. It offers real-time monitoring of current, voltage, charging power, and waveform activity, with different screen layouts that make it easier to identify abnormal charging behaviour.
Built for technicians who work with several devices, the C08 provides 8 charging outputs and supports a wide range of fast-charging protocols. It can automatically recognize active channels, detect short-circuit conditions, and provide both visual and buzzer alerts. When paired with a regulated DC power supply, it can also function as a waveform current meter for smartphone and digital-device repair work.
Key Features:

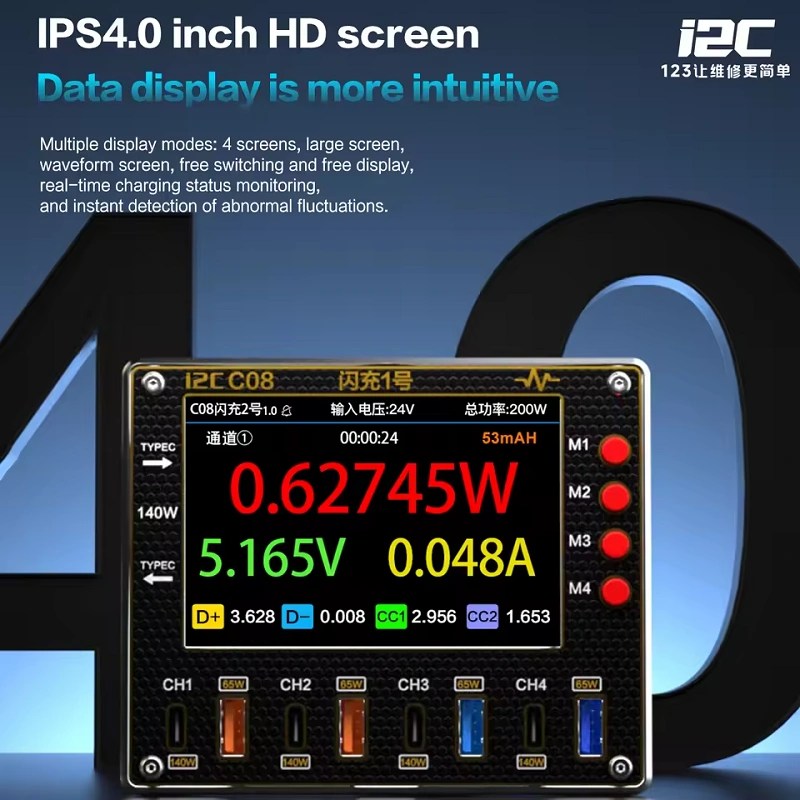

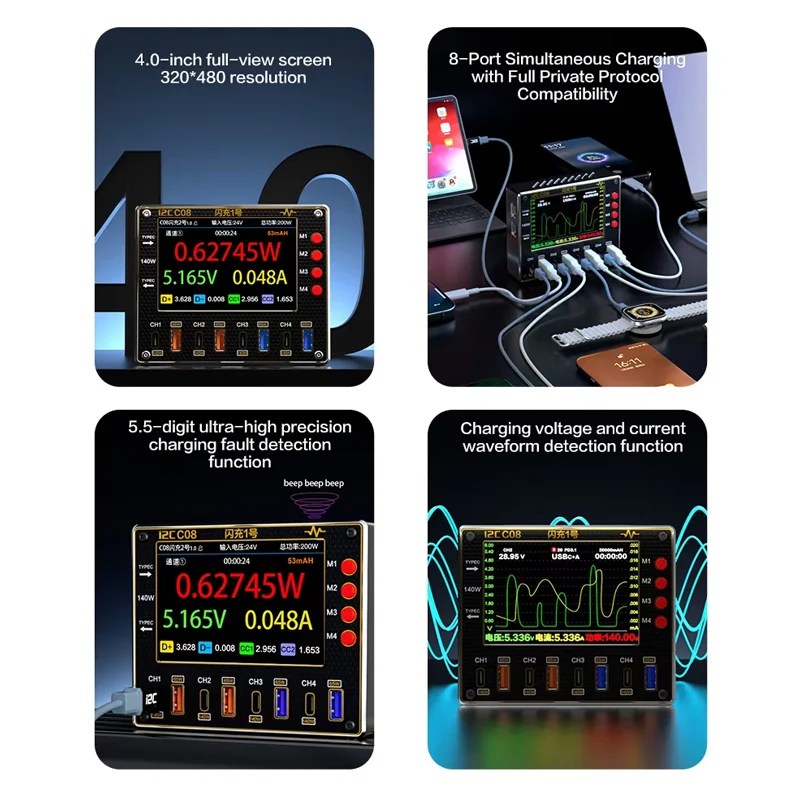

- Offers four-screen, full-screen, and waveform viewing modes with flexible display switching.
- Shows charging conditions in real time and helps identify sudden or unusual electrical fluctuations.
- Automatically checks the charging condition of a connected mobile phone motherboard.
- Detects possible short circuits and provides a flashing warning along with an audible buzzer alert.
- Automatically highlights the active channel when a single device is connected.
- When two devices are connected, the display can switch between both channels while allowing their waveforms to be checked individually.

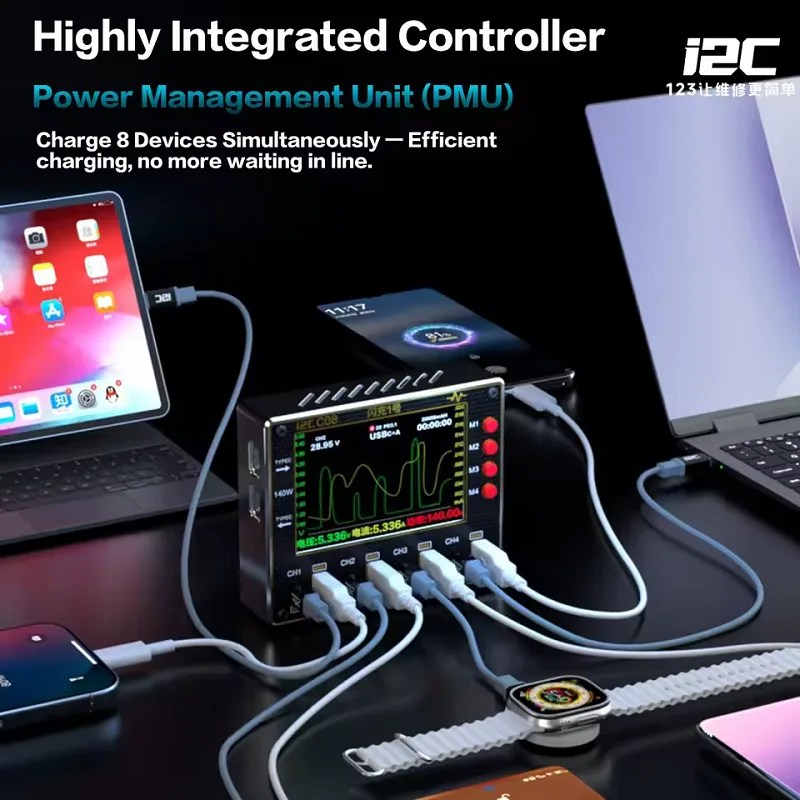

- Provides 8 charging connections, allowing multiple devices to be powered from one unit.
- Built-in protection covers over-voltage, excessive current, high temperature, and short-circuit conditions.
- Internal heat-sink construction transfers heat toward the rear PCB area, designed to improve cooling efficiency by approximately 50%.
- Supports PD3.1, PE2.1, BC1.2, FCP, SCP, QC3.0, VOOC, Super VOOC, and other compatible charging protocols.
- Can be paired with a regulated power supply and used as a waveform current meter for repair diagnostics.
- Plug-and-use operation allows compatible chargers to be tested for voltage, current, and output power.

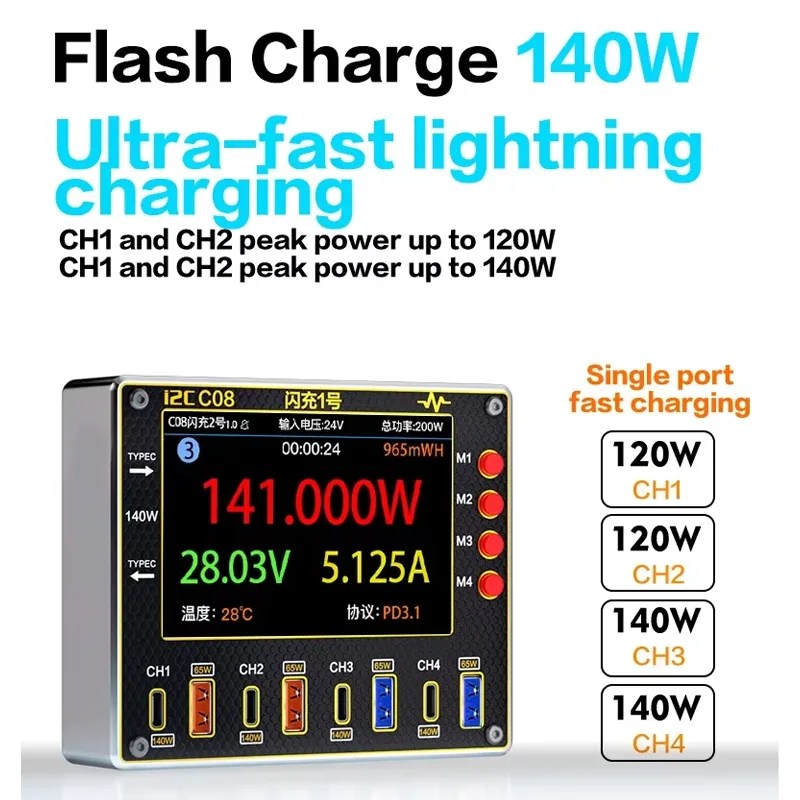

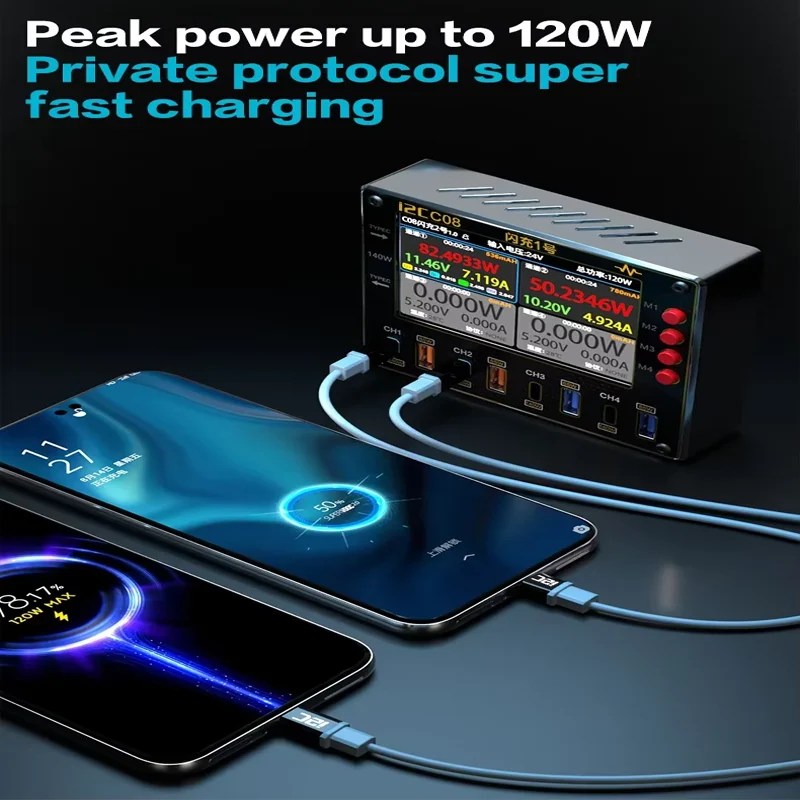

- Supports testing at loads of up to 140W and can work with compatible proprietary charging protocols.
Specifications:
| Specification | Details |
|---|---|
| Brand | i2C |
| Product | Flash Charger No.1 |
| Model | C08 |
| DC Input | 24–30V |
| Output Voltage Range | 6–20V |
| Type-C Channels | CH1–CH4 |
| Type-C Output Levels | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A |
| Type-C Adjustable Range | 6V–28V, up to 140W |
| USB-A Channels | CH1–CH4 |
| USB-A Output Levels | 5V/3A, 20V/3.25A |
| Rated Total Output | Up to 600W |
| Device Net Weight | 239g |
| Packaged Weight | 743g – needs confirmation |

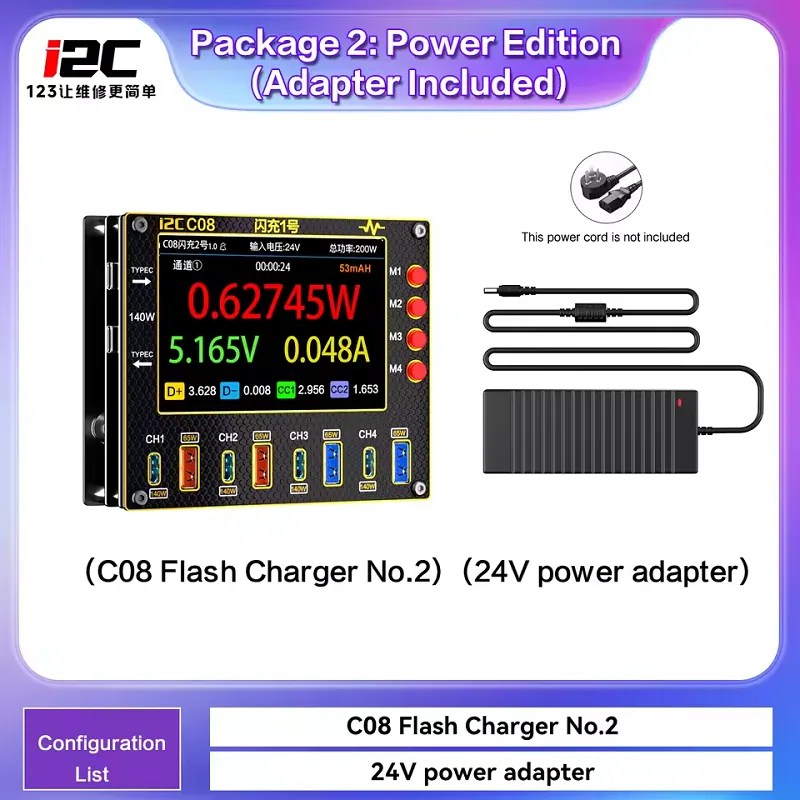

| Package Contents | 1 × Unit according to selected package option |
