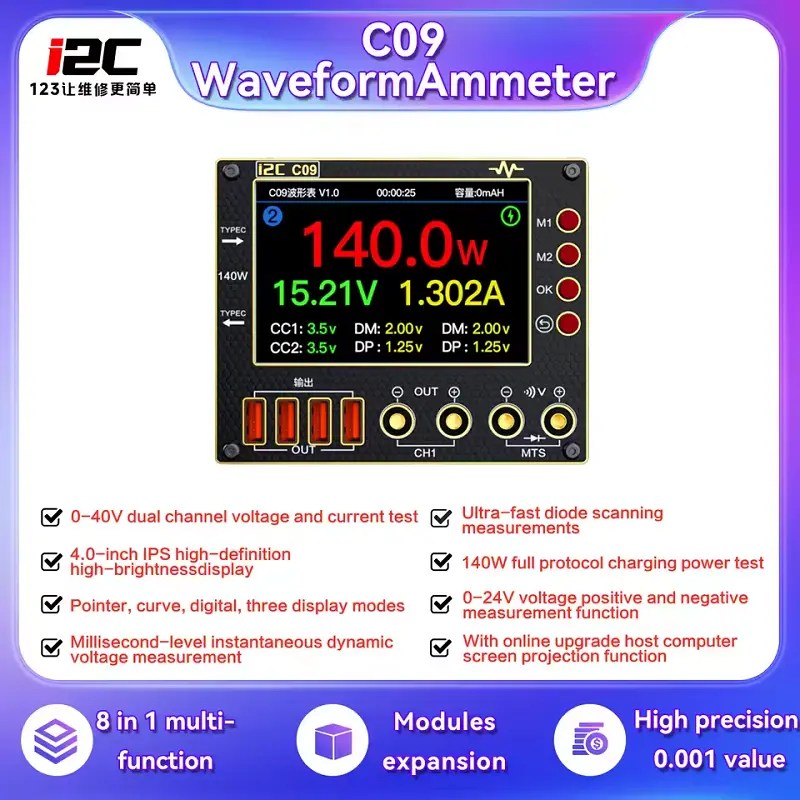

I2C C09 Waveform Ammeter 0-40V Input Dual Channel Voltage Current Tester 4 Inch HD Display Fast Diode Scaning Measurement Tester

Description

I2C C09 Waveform Ammeter 0-40V Input Dual Channel Voltage Current Tester 4 Inch HD Display Fast Diode Scaning Measurement Tester

Product Features :-

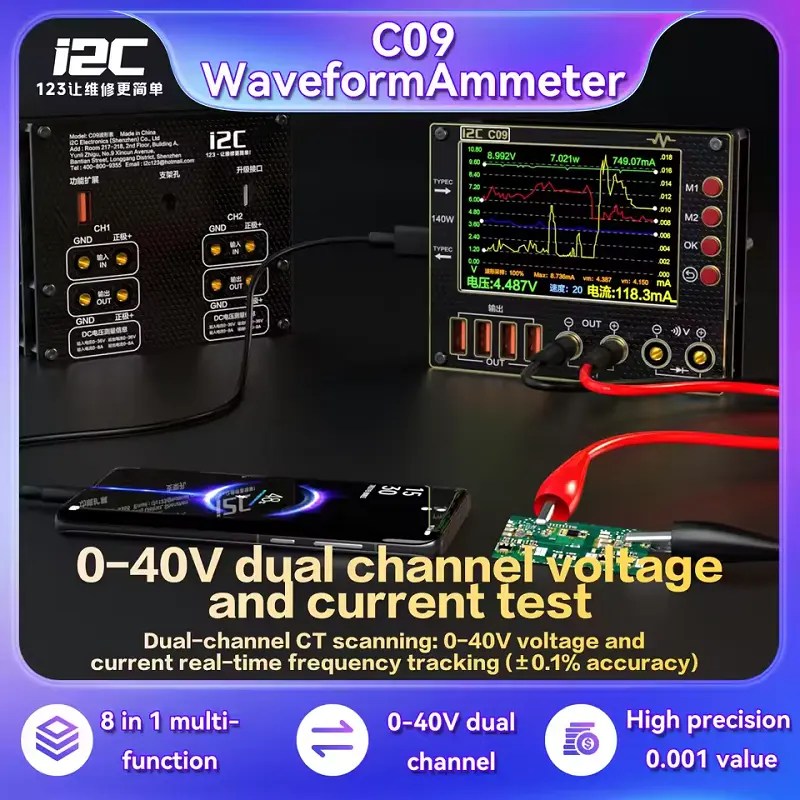

• 0~40V Dual-channel voltage and current testing
• 4.0-inch IPS high-definition high-brightness display
• Three display modes: pointer, curve, and digital
• Millisecond-level instantaneous dynamic voltage measurement

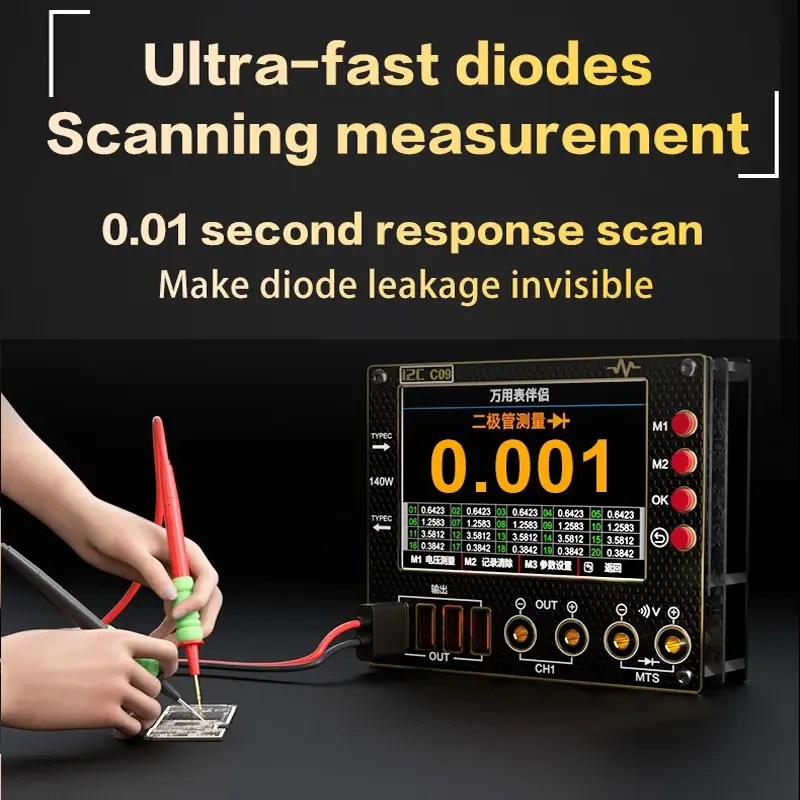

• Ultra-high-speed diode scanning measurement

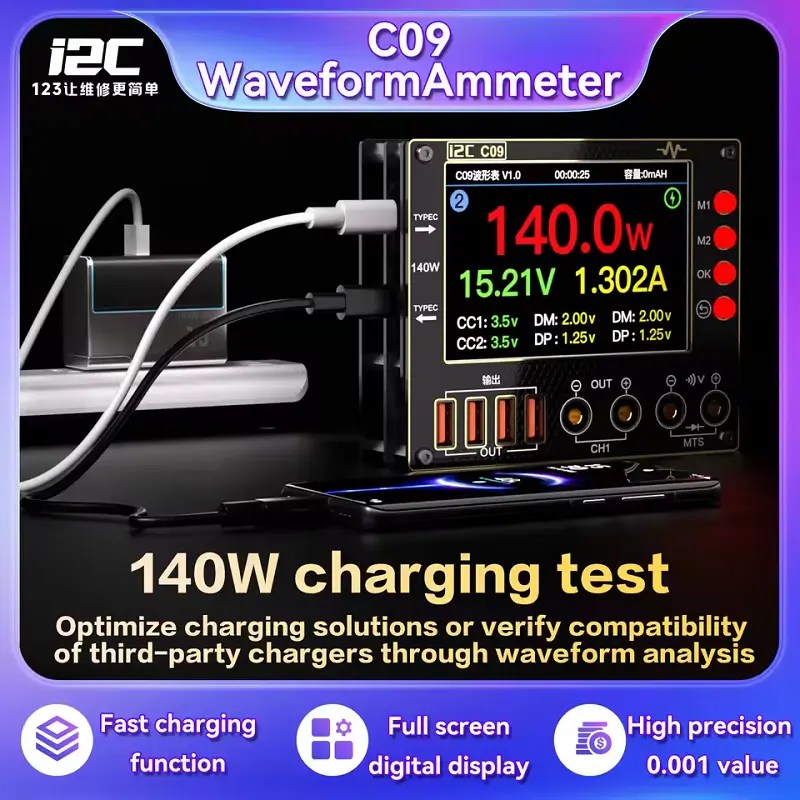

• 140W full-protocol charging power testing

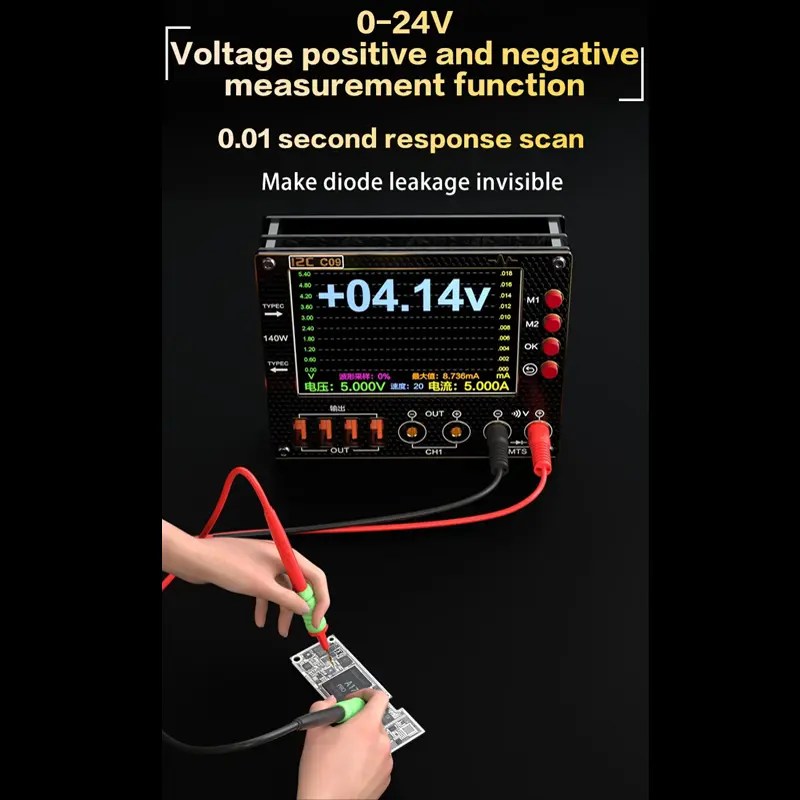

• 0-24V positive/negative voltage measurement function
• Supports online upgrades and PC screen projection functionality

Product Specification :-

• Input voltage DC: 0~40V
• Device power supply: 5V / 2A
• Diode test: 0~2.8V
• Effective resistance: 0~50K
• Voltage measurement: 0~24V
• Two-channel voltage measurement: 0~40V
• Detection current: 0~8A
• Protection voltage: <60V
• Protection current: <15A
• Banana plug output voltage and current: 40V/8A
• USB output voltage and current: 20V/2A
• Voltage resolution: 1mV
• Current resolution: 0.1mA
• Current accuracy: 100μA
• Screen size: 4.0-inch
• Screen resolution: 320*480
