Description
The JCID CD01 Charging Detector is a professional mobile phone charging diagnostic tool designed for charging port testing, voltage monitoring, resistance analysis, and fast charging protocol detection. This advanced JCID CD01 Type-C Lightning Charging Tester features a 2.4-inch digital display, intelligent fault diagnosis, and real-time monitoring of charging signals. Supporting Type-C and Lightning ports, the device helps technicians identify charging abnormalities without dismantling compatible smartphones. Its deep protocol analysis and smart detection technology make it suitable for iPhone and Android charging system troubleshooting.
Designed for professional mobile repair technicians, the JCID CD01 Charging Detector With JC Drawing supports integration with JC Intelligent Drawing software for resistance comparison, charging circuit analysis, and supported motherboard fault location. The device features protocol handshaking analysis, a built-in gyroscope for automatic screen rotation, and customizable interface settings. With support for PD, QC, FCP, SCP, FlashCharge, Super FlashCharge, and VOOC fast charging protocols, this compact charging detector provides an efficient solution for charging port diagnosis and professional mobile repair applications. Available at Baba Tools, it is a practical addition to any mobile repair workstation.
Key Features
- Testing Without Dismantling: Supports charging port diagnosis without opening compatible smartphones.
- Type-C & Lightning Support: Designed for charging and resistance testing through supported connector types.
- 2.4-Inch Digital Display: Clear screen for viewing voltage readings, protocol information, and diagnostic results.
- Real-Time Voltage Monitoring: Monitors D+, D−, CC1, and CC2 signal voltage during supported charging tests.
- Deep Charging Protocol Analysis: Identifies supported fast charging protocols for efficient troubleshooting.
- Protocol Handshaking Analysis: Helps detect abnormalities during charging protocol negotiation.
- Smart Fault Diagnosis: Assists technicians in identifying charging circuit and communication issues.
- JC Intelligent Drawing Integration: Supports online schematic reference and resistance comparison for fault investigation.

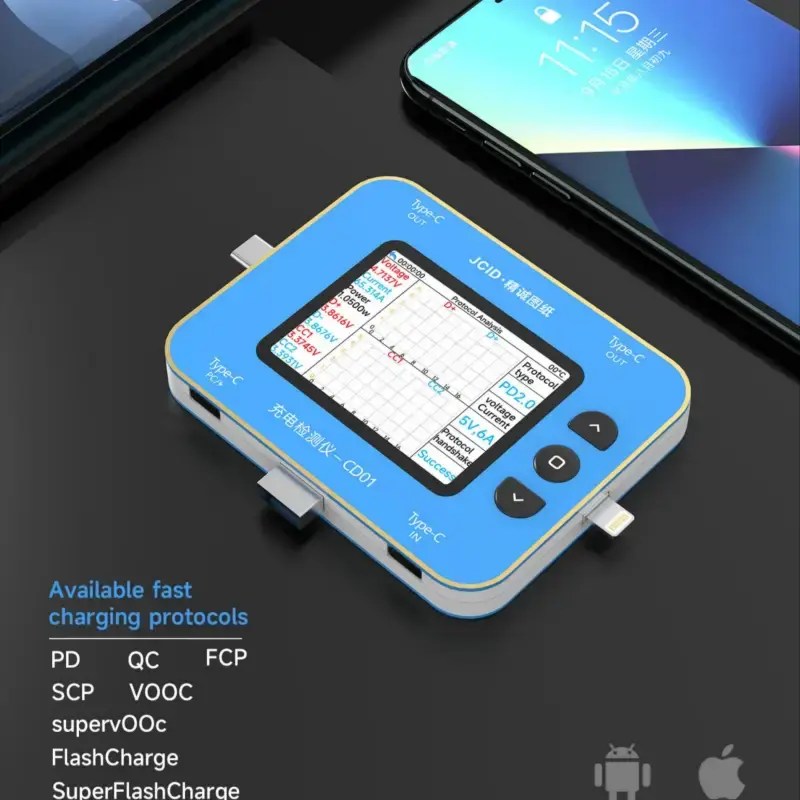

- Fast Charging Protocol Support: Compatible with PD, QC, FCP, SCP, FlashCharge, Super FlashCharge, and VOOC.
- Resistance Scanning: Supports resistance testing through Type-C and Lightning scanning ports.
- Gyroscope Screen Rotation: Automatically adjusts screen orientation for convenient viewing.
- Advanced App Interface: Combines voltage, resistance, and protocol analysis in a convenient interface.
- Customizable User Settings: Supports interface style, language, and sound customization.
- Button-Controlled Operation: Physical controls for convenient navigation.
- Compact & Portable Design: Lightweight construction suitable for repair workshops.
- Professional Repair Applications: Ideal for charging fault detection, USB port diagnostics, and motherboard troubleshooting.
Product Specifications
| Specification | Details |
|---|---|
| Product Brand | JCID |

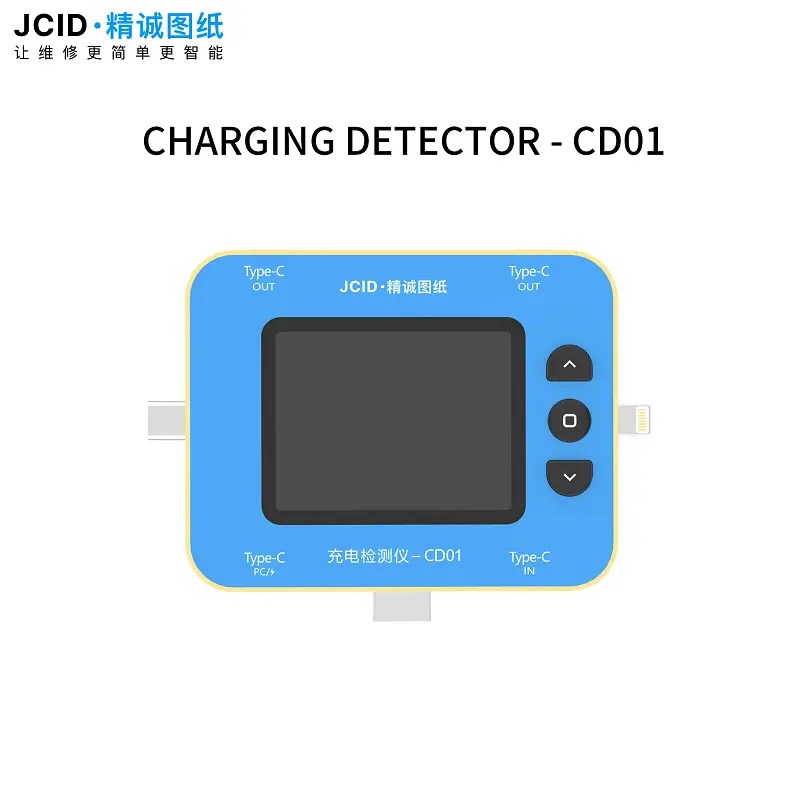

| Product Name | JCID CD01 Charging Detector With JC Drawing |
| Product Model | CD01 |
| Product Type | Charging Detector / Mobile Diagnostic Tool |
| Software Integration | JC Intelligent Drawing |
| Color | Blue |
| Supported Languages | English / Chinese |
| Screen Size | 2.4 Inches |
| Display Type | Digital Display |
| Dimensions | 104 × 81 × 10 mm |
| DC Port Rating | 4V–30V, 5A |
| Power Supply Port | Type-C / USB 3.0 |
| Resistance Scanning Port | Type-C / Lightning |
| Operation Type | Physical Buttons |
