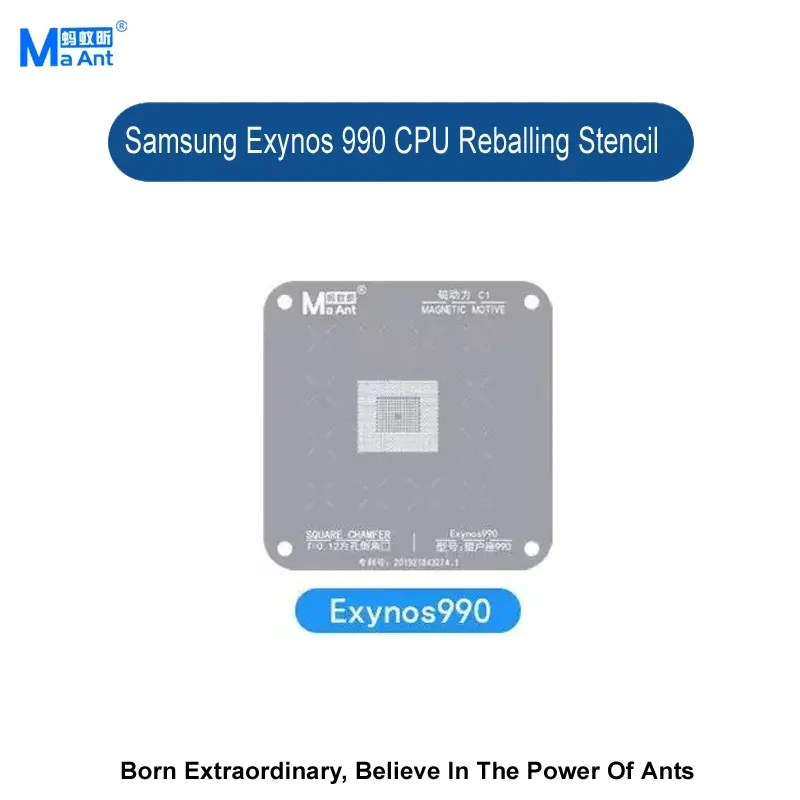

Samsung Exynos 990 CPU IC Reballing Stencil
The Samsung Exynos 990 CPU IC Reballing Stencil is a high-quality, professional-grade tool designed for precise reballing and repair of Samsung Exynos 990 CPU chips. Crafted for mobile repair technicians, electronics engineers, and refurbishing centers, this stencil ensures accurate solder ball placement, guaranteeing reliable CPU connections and optimal device performance during motherboard repair or chip rework.
Ideal for BGA (Ball Grid Array) reballing, the stencil is essential for restoring damaged CPUs, fixing soldering issues, and maintaining full device functionality, making it an indispensable tool in professional mobile repair workflows.
Key Features and Benefits
-
Precision Reballing:
Designed specifically for the Samsung Exynos 990 CPU, ensuring accurate solder ball alignment on BGA pads. -
Durable Construction:
Made from heat-resistant stainless steel, capable of withstanding repeated professional use without deformation. -
Professional-Grade Tool:
Trusted by technicians and electronics engineers for high-accuracy CPU rework and repair operations. -
Easy to Use:
Aligns perfectly with CPU pads, simplifying the reballing process and minimizing errors. -
Improves Repair Efficiency:
Speeds up the reballing process while ensuring stable and reliable solder connections, reducing rework and repair time. -
Compact and Portable:
Lightweight and easy to store, making it convenient for repair shops, workshops, and on-site repairs.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Professional Grade |
| Model | Samsung Exynos 990 CPU Reballing Stencil |
| Type | BGA Reballing Stencil |
| Material | Stainless steel, heat-resistant |
| Applications | CPU reballing, motherboard repair, soldering restoration |
| Compatibility | Samsung Exynos 990 CPU |
| Condition | 100% brand new, factory sealed |
| Design | Precision cut for accurate solder ball placement |
Applications
The Samsung Exynos 990 CPU IC Reballing Stencil is ideal for:
-
Mobile repair shops: restore functionality to devices with damaged CPUs
-
Refurbishing centers: efficiently repair Exynos 990 CPUs
-
Electronics labs: precise soldering of BGA components
-
Professional technicians and hobbyists: ensure accurate CPU connections during reballing
-
Motherboard repair and chip replacement: reliable tool for restoring solder pads
Its precision design and durable construction make it indispensable for technicians working on Samsung Exynos 990 devices.
How to Use
-
Clean the CPU pad surface on the motherboard or chip thoroughly.
-
Align the Samsung Exynos 990 reballing stencil over the CPU pads.
-
Apply solder paste or solder balls evenly through the stencil holes.
-
Carefully remove the stencil and heat the solder using a reflow station or hot air gun to complete the reballing process.
-
Inspect the solder joints for proper alignment and connections before reassembling the device.
Tip: Use microscope magnification to ensure all solder balls are accurately placed and connected.
Why Choose Samsung Exynos 990 CPU IC Reballing Stencil
The Samsung Exynos 990 CPU IC Reballing Stencil delivers precision, durability, and professional reliability for mobile repair tasks. Its stainless steel construction, accurate cutouts, and ease of use make it a must-have tool for technicians, refurbishing centers, and electronics labs, ensuring successful CPU reballing and stable device performance.
