Description

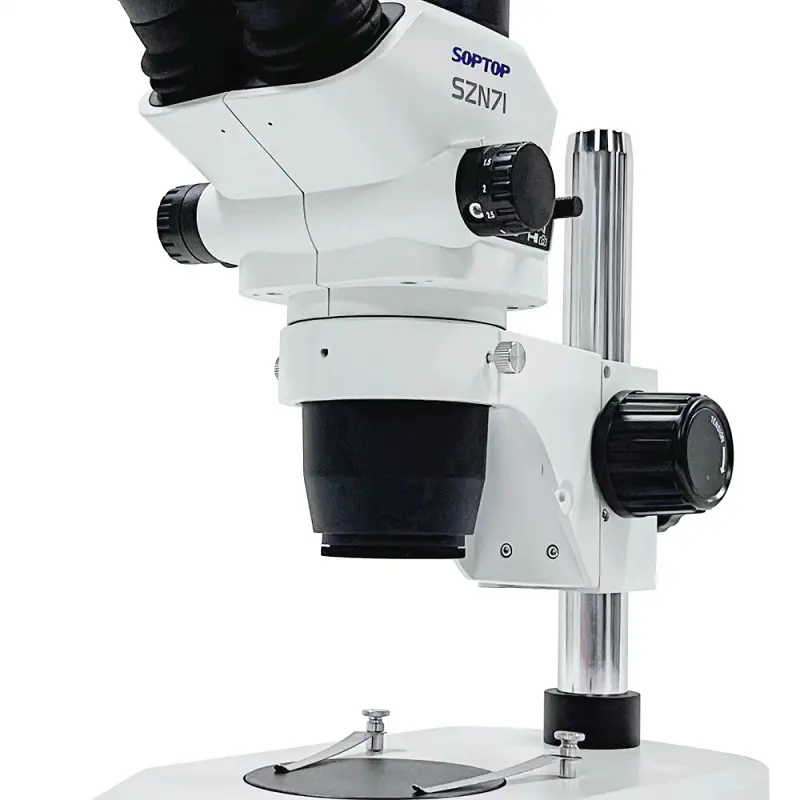

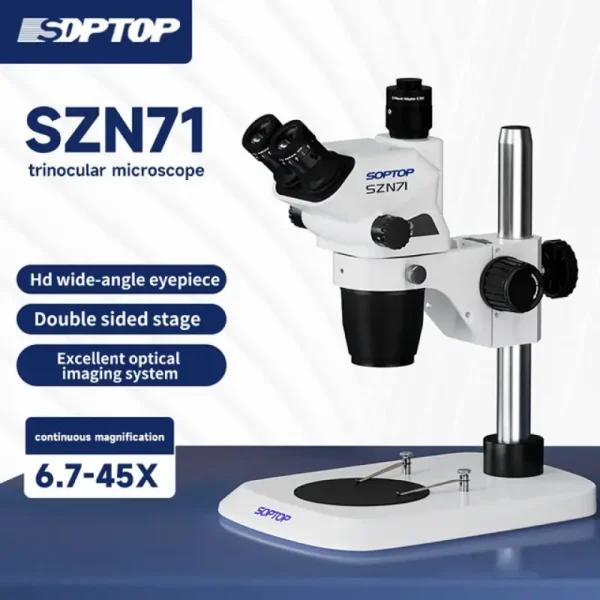

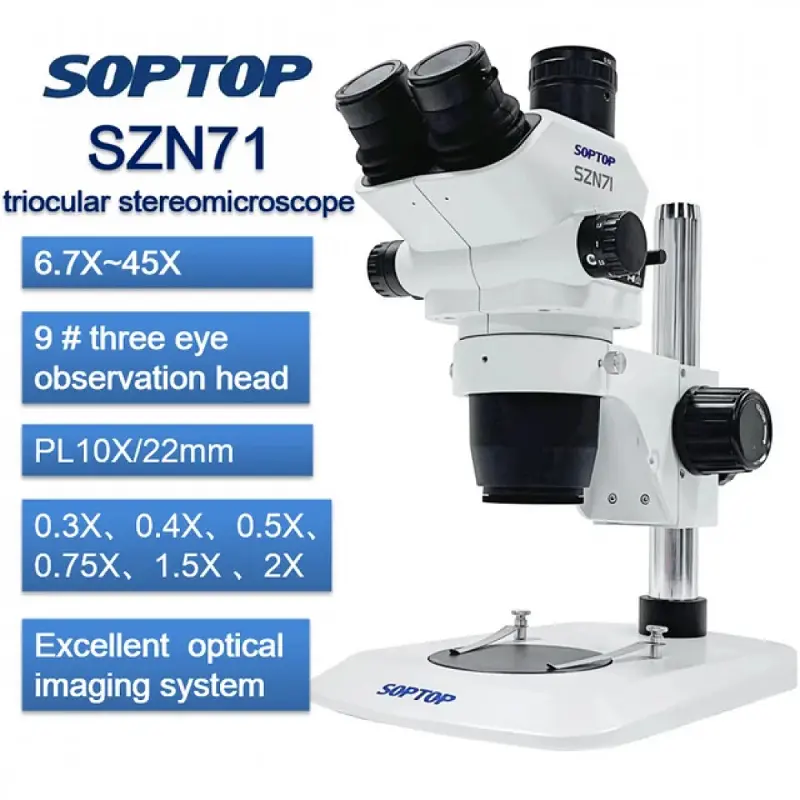

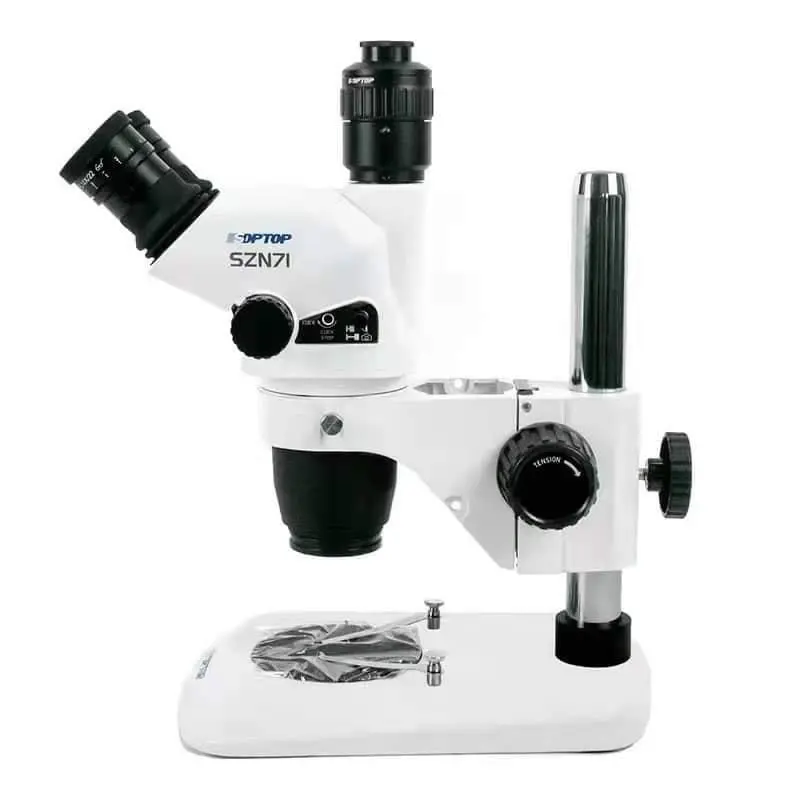

SZN7i-B4 Base Microscope, a versatile and high-performance optical tool designed to meet the demands of professionals and enthusiasts alike. This microscope combines advanced optical engineering with practical features, ensuring accurate magnification, excellent flatness, and exceptional depth of field. Available with LED, halogen, and fluorescence illumination options, it adapts to a wide variety of applications, from electronic repair and industrial inspection to biological analysis and research.
Precise Zoom with Click-Stop Mechanism
One of the standout features of the SZN7i-B4 microscope is its zoom hand wheel with click-stop mechanism. This design innovation allows for precise, incremental magnification adjustments, making it easier than ever to measure and confirm sample dimensions. The click-stop ensures that each magnification step is consistent and repeatable, reducing the risk of misinterpretation during critical observations. Whether you are inspecting circuit boards, micro-components, or biological samples, this feature guarantees accurate amplification every time.
Greenough Optical System for Superior Imaging
The microscope employs a Greenough optical system with a convergence angle of 10 degrees. This system, combined with wide-field plan eyepieces, ensures superior flatness across the viewing field while maintaining an impressive depth of field. Users can observe samples with minimal distortion, even at higher magnifications, which is crucial for applications requiring precise detail analysis. The optical clarity of this system makes it ideal for electronics repair, semiconductor inspection, micro-soldering, and any application where accurate observation is critical.
Expandable Magnification Range
Flexibility is at the core of the SZN7i-B4 design. The microscope includes three auxiliary objectives—0.5X, 0.7X, and 1.5X—allowing users to expand the magnification range from 3.3X to 135X. The maximum working distance reaches 177mm, providing ample space for larger samples, while the minimum working distance of 47mm accommodates small, detailed components. This wide range of magnification and working distance ensures the microscope can handle virtually any task, from close-up PCB inspection to larger-scale assembly verification.
Versatile Illumination Options
Lighting is a critical component of microscopy, and the SZN7i-B4 microscope offers multiple illumination choices to suit every application. Options include LED, halogen, and fluorescence lighting, with both built-in illuminators and external lighting systems available. The ability to select the most suitable light source ensures that users achieve the best image quality for their specific needs, whether observing reflective surfaces, transparent samples, or fluorescent markers. Adjustable brightness and even distribution guarantee clear, consistent illumination across the entire field of view.
Ergonomic and User-Friendly Design
The SZN7i-B4 microscope is engineered for comfortable and efficient use. Its ergonomic design allows users to work for extended periods without experiencing fatigue. The zoom hand wheel and auxiliary objectives are easily accessible, making magnification changes smooth and intuitive. The microscope’s stable base and precise focusing system reduce vibrations, ensuring a clear and steady image at all times.
Applications and Versatility
The SZN7i-B4 Base Microscope is ideal for a wide range of professional and industrial applications, including:
-
Electronics and PCB repair: Perfect for inspecting microchips, solder joints, and electronic components.
-
Industrial quality control: Inspect small parts, materials, or assemblies with precision.
-
Biological and educational use: Observe biological specimens, slides, and other samples clearly.
-
Research and laboratory applications: Conduct detailed analyses requiring high magnification and clarity.
-
Micro-soldering and watchmaking: The wide working distance and flat field allow meticulous component manipulation.
Durable and Reliable Construction
Built with high-quality materials and precision engineering, the SZN7i-B4 microscope is designed for long-term use in demanding environments. The mechanical components, including the focus system and zoom mechanism, are smooth and robust, providing consistent performance over time. The optical system is carefully aligned to reduce chromatic and spherical aberration, giving users a clear, true-to-life image without distortion.
Why Choose the SZN7i-B4 Microscope from Baba Tools
At Baba Tools, we prioritize quality, reliability, and precision. The SZN7i-B4 Base Microscope embodies these values, offering a professional-grade solution for users who demand accuracy, versatility, and ease of use. Its combination of advanced optics, versatile magnification, ergonomic design, and multiple lighting options makes it a valuable tool for professionals in electronics, laboratory work, industrial inspection, and educational settings.
Whether you are performing PCB inspections, micro-soldering, biological analysis, or high-precision component assembly, the SZN7i-B4 ensures that every detail is visible and every measurement is accurate. Its expandable magnification range and flexible illumination options allow you to tailor the microscope to your specific tasks, enhancing efficiency, accuracy, and overall productivity.
Package Includes:
-
1 × SZN7i-B4 Base Microscope
-
Auxiliary Objectives: 0.5X, 0.7X, 1.5X
-
Wide Field Plan Eyepieces (standard)
-
Built-in illumination as per selected option
Key Features Summary:
-
Zoom hand wheel with click-stop for accurate magnification
-
Greenough optical system with 10° convergence angle
-
Wide field plan eyepieces for excellent flatness and depth of field
-
Three auxiliary objectives for expanded magnification (3.3X – 135X)
-
Maximum working distance: 177mm; Minimum: 47mm
-
Multiple illumination options: LED, halogen, fluorescence
-
Built-in or external light compatible
-
Ergonomic, stable, and durable construction
The SZN7i-B4 Base Microscope from Baba Tools is an indispensable instrument for anyone seeking precision, reliability, and flexibility in a single optical device. Its superior optics, ergonomic design, and versatile lighting options ensure that every observation is accurate, clear, and efficient. Upgrade your workspace today and experience the power of professional-grade microscopy tailored to your needs.
