Description

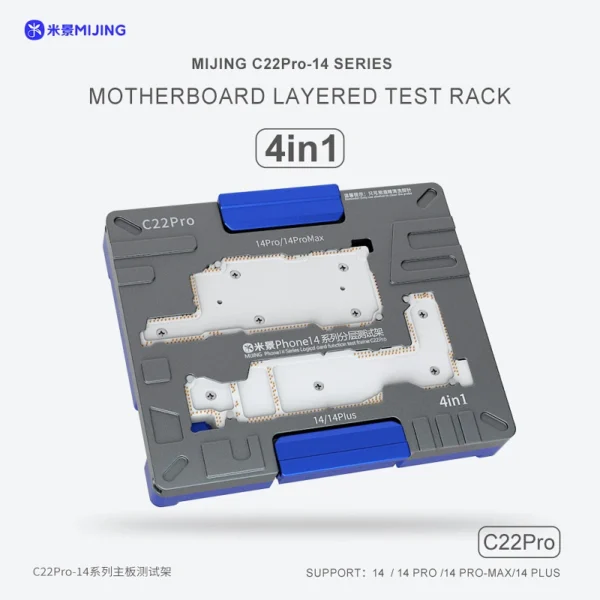

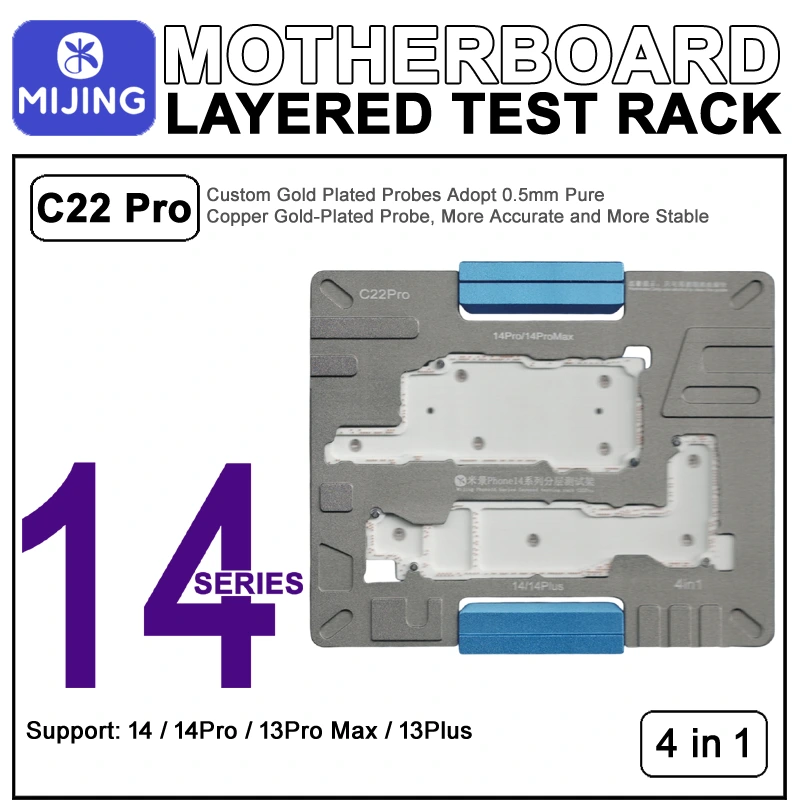

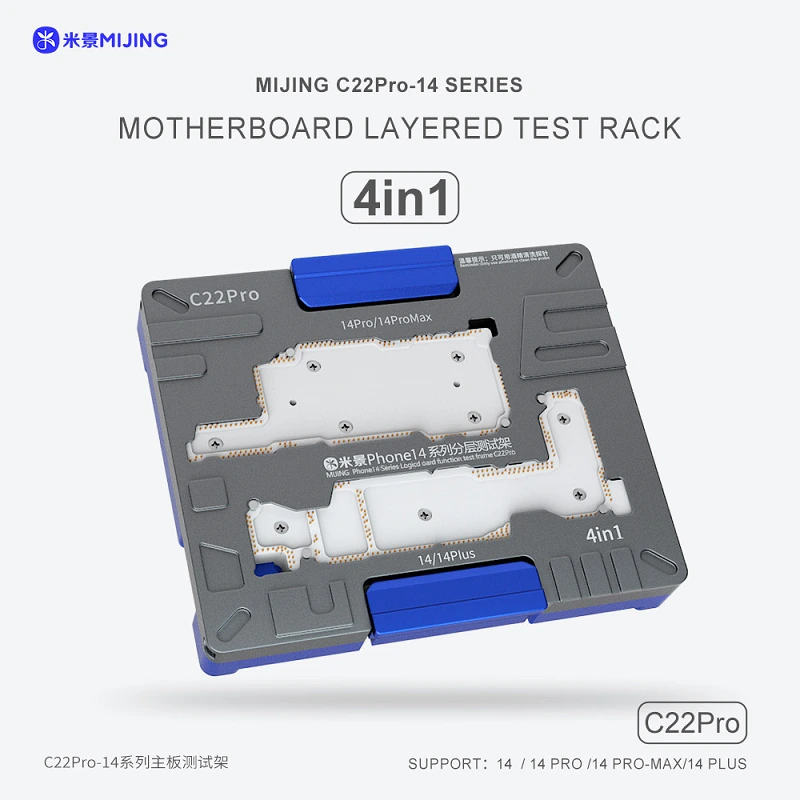

MiJing C22 Pro Motherboard Middle Layer Tester For iPhone 14/ 14Pro/ 14Pro Max/ 14Plus
MiJing C22 Pro Motherboard Middle Layer Tester for iPhone 14 series ensures precise diagnostics, precise alignment and reliability for efficient mobile repairs.
Feature:
- Easy?to?use,?connect?the?upper?and?lower?motherboards?for?testing/repair,?avoid?problems?after?installation,?increase?maintenance?speed
- Check?in?advance?to?avoid?duplicate?disassembling?and?breaking?the?motherboard
- Small?size,?easy?to?carry.
Operational?Process:
1,?Prepare:
Power?On/Off?Cable*1
Power?Line*1
LCD?Test?Cable*1
Screen*1 Main?Board*1

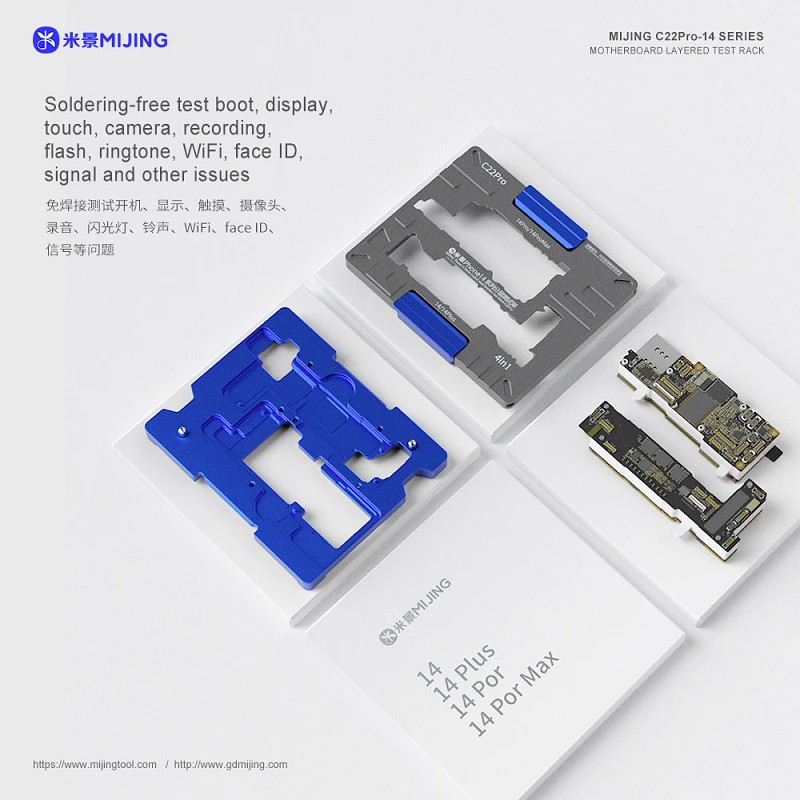

2,?Decomposition?iPhone 14series Middle?Layer?simply?equipped?the?test?fixture.

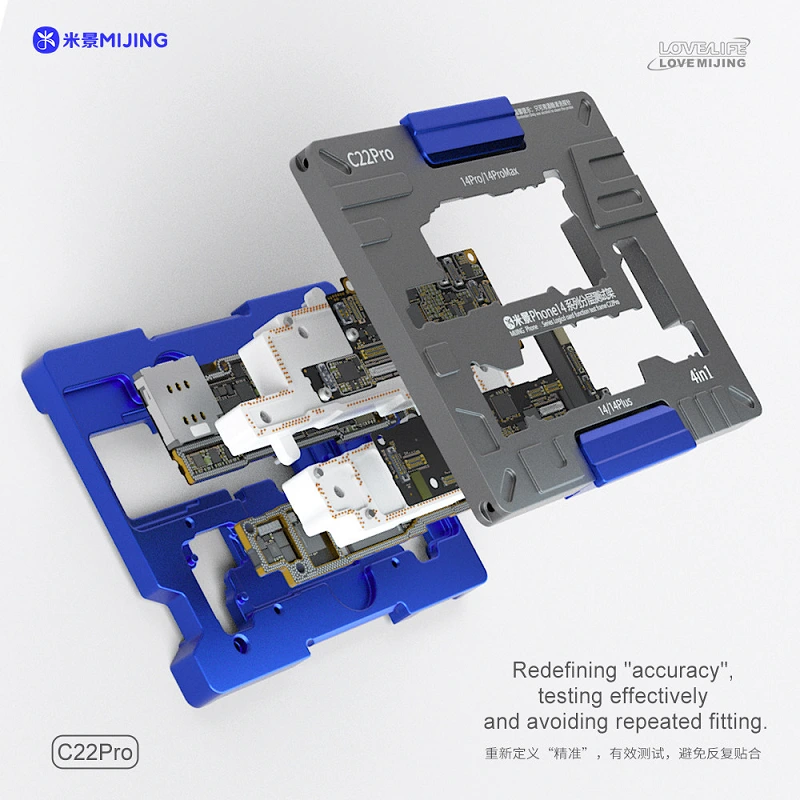

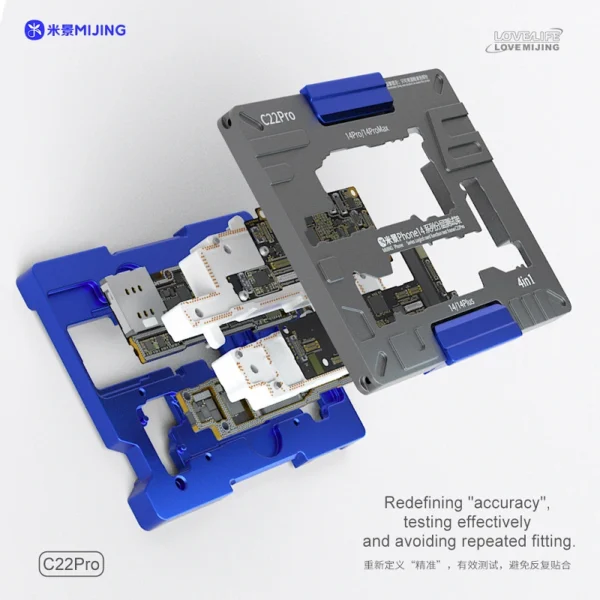

3,?Install:?Put?in?the?lower?main?board,?put?on?the?pinboard,?but?the?top?board?in,?and?then?cover?the?test?rack.
4,?The?first?way?to?connect?the?screen?line, boot, power?cord, or?battery?test?ink?success?or?not.
The?second?way?is?to?connect?the?end?plug?on?the?base?of?the?first?method?to?implement?the?brush?function.
