Description

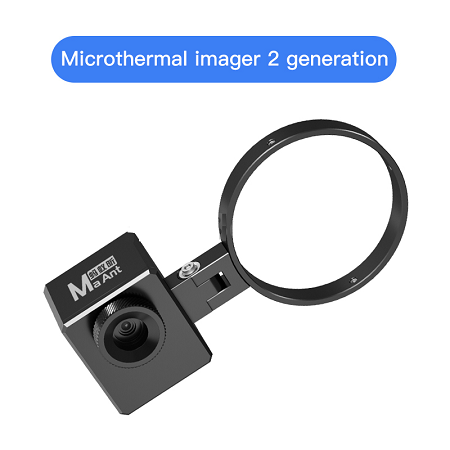

MaAnt Microthermal Imager Camera Support Work With Microscope For Phone Motherboard IC Chip Repair Quick Diagnosis Instrument
GO TO SOFTWARE DOWNLOAD LINK :-
- https://drive.google.com/drive/folders/1JOyUgYxzVH20VoMwajOlhkgdfyLdEby_?usp=drive_link.
- MaAnt 2 generation microthermal imager, quick positioning and quick, check with one key, focus precision adjustment, ultra HD resolution, rapid location screening
Ultra-high resolution, 52000 points effective temperature measurement (260*200), full-frame infrared detection area increased by 3 times Military-grade ultra high-resolution infrared lens, no need, to see the light camera, clearly displays the outline of very small devices Detection, different motherboard thickness is different, at this time we can adjust the focus according to the thickness of the motherboard, to achieve a high definition, focusing effect, so that the image is clearer, imaging higher clarity
Connect the thermal imager to the computer through the Type-C data cable, install the MaAnt IR-Setup software
More practical design, quickly adjust the direction of the lens, and use the supporting screw handle to loosen it, it can rotate up and down 360 and select the appropriate detection angle
The upper and lower parts of the camera are adjusted at 45°, which makes it easier to adjust the Angle needed in the use
One-click quick search. according to the real-time temperature quickly locate the temperature anomaly, by adjusting the temperature range, and troubleshooting the fault carefully

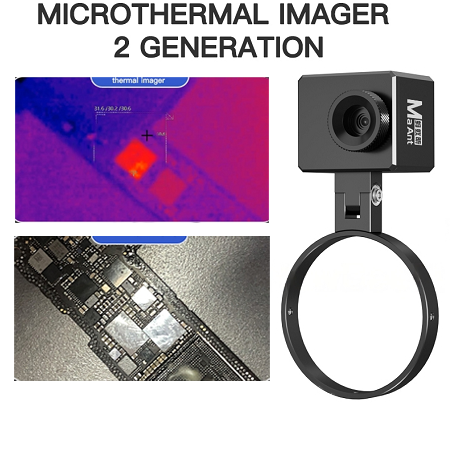

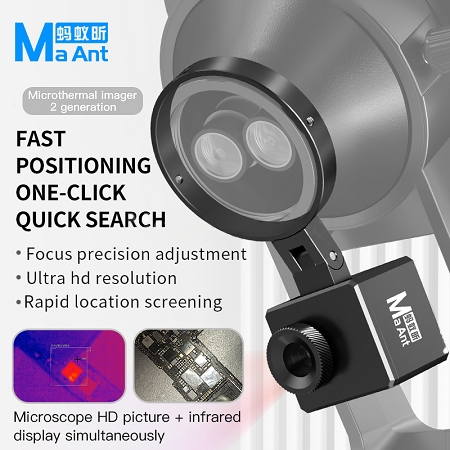

Visible light and thermal imaging images can simultaneously see the motherboard diagram, microscope HD picture + infrared display simultaneously
Save the actual temperature data in real-time and view the data temperature anytime and anywhere
According to the analysis mode of circuit board fault maintenance, the short circuit point of the circuit board can be quickly located and the fault of leakage components can be found, the minimum current leakage can be detected at about 6mA
For the thermal field distribution mode of products and circuit boards, the 3D thermal field mode is more intuitive, and the 2D thermal field curve is more detailed.
